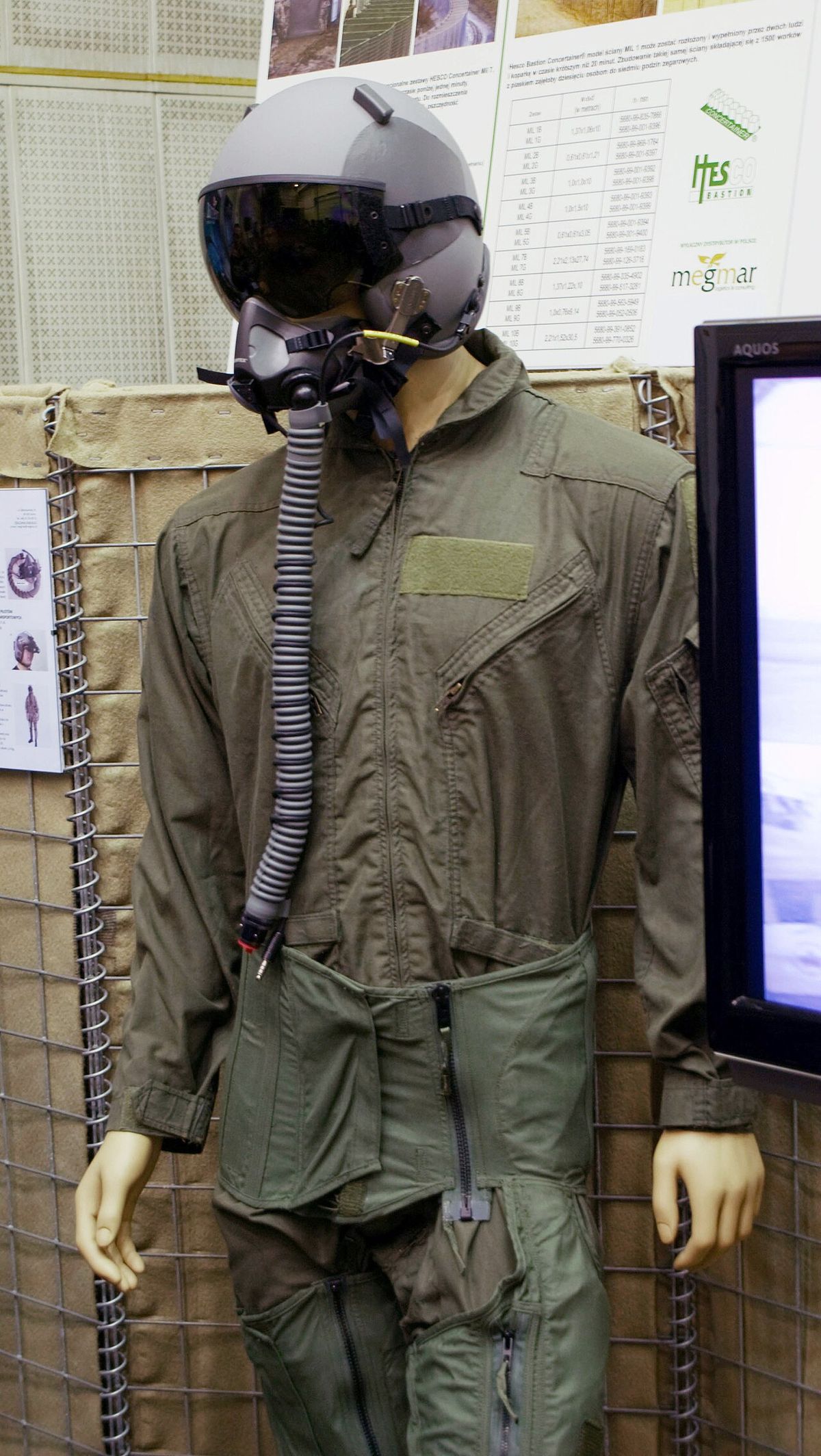

G-suit

Physiological Challenge and Suit Operation

High acceleration forces, or g-forces, experienced during sharp aerial maneuvers pull a pilot's blood downward, away from the brain and eyes. This sequential deprivation first causes a dimming of vision known as greyout, progresses to tunnel vision, then complete blackout, and can culminate in g-induced loss of consciousness. The danger of g-LOC is compounded by a period of disorientation upon recovery, which can be fatal in a combat or high-performance flight scenario. A G-suit mitigates this by using inflatable bladders within a tight-fitting garment that pressurize the abdomen and legs, mechanically restricting blood flow to the lower extremities. This action, combined with the pilot's own anti-g straining manoeuvre, helps maintain sufficient blood pressure in the upper body. While a typical person's resting g-tolerance is between 3 to 5 g, a modern G-suit can add approximately 1 g of protection, enabling trained pilots to withstand forces of 9 g or more in aircraft like the F-16 Fighting Falcon. The suit does not eliminate physical fatigue or discomfort but extends the duration a pilot can tolerate extreme forces, making the human pilot the critical factor in modern air combat rather than the aircraft's structural limits.

Design Evolution and Key Models

The fundamental design of the G-suit has evolved from liquid-filled systems to pneumatic bladders, though advanced liquid designs have re-emerged. Early prototypes, including those by Wilbur Franks, used water-filled bladders which were effective but heavy. The shift to lighter, air-inflated bladders was driven by research at the Mayo Clinic in the United States, which demonstrated that maintaining arterial pressure was more critical than managing venous return for brain perfusion. This physiological insight led to the first U.S. military G-1 anti-g suit in late 1943, a design principle that remains in widespread use today. Modern suits are typically worn over flight suits and are connected to the aircraft's pneumatic system via a g-sensitive valve that automatically inflates the bladders during high-g manoeuvres. Some modern very high-g aircraft augment the suit with positive pressure breathing, applying a small amount of pressure to the lungs to further enhance g-resistance.

A notable modern development is the Libelle G-Multiplus suit, designed by the Swiss company Life Support Systems AG and the German Autoflug for the Eurofighter Typhoon. This suit reverts to using liquid as the medium and improves on performance compared to earlier designs. It is under consideration for adoption by the United States Air Force. Modern g-suits must meet standards like the United States Air Force Standard CSU-13B/P and United States Navy Standard CSU 15 A/P. In the Red Bull Air Race, pilots have worn a g-suit called the g-race suit since 2009. This is an autonomous, water-filled full-body system containing four fluid muscles, each filled with approximately 1 litre of fluid, which provides instantaneous counter-pressure without the delay of pneumatic systems.

• Franks Flying Suit (Mark I and II): First operational G-suit, water-filled, used by Allied forces from 1942, with Mark I for RAF Hurricane and Spitfire pilots and Mark II for USAAF and RCAF pilots.
• Cotton Aerodynamic Anti-G Suit: Australian-designed, first successful gas-operated suit using rubber sacs, approved by Allied war chiefs on February 19, 1942, and tested in Hurricanes and Spitfires.
• G-1 Anti-G Suit (GPS): First U.S. military issue, air-inflated, released in late 1943, also known as the Clark-Wood suit or arterial occlusion suit.
• Modern Pneumatic Suits: Standard NATO design using air bladders, meeting specifications like CSU-13B/P.
• Libelle G-Multiplus: Advanced liquid-filled suit for the Eurofighter Typhoon, providing superior performance to pneumatic designs.
• g-race suit: Autonomous, water-filled full-body suit for Red Bull Air Race pilots, weighing about 6.5 kilograms and made from Twaron and Nomex fabric.

Canadian Origins and Wartime Development

The invention of the first practical G-suit is a significant chapter in Canadian scientific and military history. The pioneering work was led by Dr. Wilbur R. Franks at the University of Toronto's Banting and Best Medical Institute. Franks had conceived of a water-filled anti-g system as early as 1938 and built a private prototype, but his work was initially limited by the lack of a suitable aircraft for testing. With the urgent needs of the Second World War, the United Kingdom provided a Supermarine Spitfire to support his research in 1940, leading to the development of the operational Franks Flying Suit in 1941. Manufactured by the Dunlop company, these suits were first used in combat in November 1942 by pilots of the Royal Navy's 807 Squadron, flying Supermarine Seafires during the Allied invasion of North Africa, Operation Torch.

The Franks suit was produced in two main marks. The Mark I was used by Royal Air Force pilots flying Hawker Hurricanes and Spitfires, while the Mark II was supplied to the United States Army Air Forces and the Royal Canadian Air Force. Initial adoption by the RAF was cautious, partly due to concerns that pilots might overstress their aircraft's airframes and to maintain secrecy from enemy forces. Parallel development occurred in Australia under Professor Frank Cotton of the University of Sydney, who commenced research in late 1940. Cotton constructed the first human centrifuge in Australia under tight security at the Sydney Medical School to test his gas-inflated suit design, which was approved on February 19, 1942. The RAF Physiological Laboratory conducted competitive trials in 1944 between the Cotton suit and the Franks suit, concluding the Cotton suit gave the best protection, but production capacity constraints led the RAF to stick with the Franks design while recommending the Royal Australian Air Force adopt the Cotton suit.

Research and Development in the United States

Concurrent with Commonwealth efforts, a top-secret research team at the Mayo Clinic in Rochester, Minnesota, made fundamental contributions to G-suit technology. The team, which included physiologists Earl H. Wood, Edward Baldes, Charles Code, and Edward H. Lambert, worked to define the specific physiologic effects causing blackout and unconsciousness during high g forces. They used a large centrifuge to whirl riders and observe blood pressures at the head and heart levels with special instruments, a method that allowed them to move beyond earlier theories focused on the body's centre of gravity. Their key finding was that maintaining arterial pressure, rather than just preventing venous return, was required to maintain perfusion of the eyes and brain, a discovery that enabled the shift from pulsatile water-filled bladders to more effective non-pulsatile air-filled bladders.

This team designed an air bladder suit that inflated the pilot's calves, thighs, and abdomen, with prototypes fabricated by the David Clark Company, leading to the names Clark-Wood suit or arterial occlusion suit. Their work culminated in the release of the first US military design in late 1943, the gradient pressure suit (GPS) type fighter pilot's G-1 anti-g suit. The researchers continued developing more advanced models throughout 1944 and beyond. Although these early suits were often uncomfortable and distracting, later analysis showed that military fighter pilots who wore them survived and defeated their opponents in greater numbers than those who did not, validating the life-saving impact of the research conducted at the Mayo Clinic.

Modern Applications in Aviation and Space

Today, G-suits are standard equipment for fighter pilots across NATO and allied nations, essential for operating fourth and fifth-generation combat aircraft. Modern fighters like the F-15 Eagle, F-16 Fighting Falcon, F/A-18 Super Hornet, Eurofighter Typhoon, and Dassault Rafale are structurally capable of sustaining turns at 9 g or more for extended periods, placing immense physiological demand on the pilot. The combination of a modern G-suit and refined anti-g straining manoeuvres allows a well-trained pilot to tolerate these forces without losing consciousness, a decisive factor in aerial combat. Historical analysis has shown that pilots equipped with G-suits historically survived engagements and achieved victories at higher rates than those without this protection, demonstrating its role as a force multiplier.

In spaceflight, astronauts also wear G-suits, primarily during the high-g phases of launch and re-entry. However, the challenge differs from aviation due to the prolonged effects of microgravity, which causes cardiovascular deconditioning. Research by the Canadian Space Agency and others has investigated advanced suits that use a sequential milking action to aid blood flow to the upper body, an adaptation of the core G-suit principle for the unique environment of space. Beyond military and space applications, specialized G-suits are used in elite air racing. Since the 2009 season, pilots in the Red Bull Air Race World Championship have worn the custom g-race suit, an autonomous, water-filled full-body system that provides instantaneous pressure without the up to two-second delay of traditional pneumatic suits, illustrating the technology's adaptation to the demands of precision sport.

Alternative Approaches and Historical Experiments

Before G-suits became reliable, aircraft designers explored radical cockpit configurations to mitigate g-forces physiologically. During the Second World War, several experimental aircraft were designed with the pilot in a prone or supine position. The theory was that by aligning the pilot's body parallel to the direction of the g-force, the vertical distance over which blood pressure must be maintained would be reduced, thus lessening the tendency for blood to pool in the legs. German and American projects, such as the prone-pilot Henschel Hs 132, which never flew, and the Northrop XP-79, which crashed on its first powered flight, incorporated this concept. A similar concept, the supine cockpit, also exists but faced similar practical hurdles.

Post-war experiments continued, with the United Kingdom testing a highly modified Gloster Meteor F8 jet fighter and the piston-engined Reid and Sigrist R.S.3 Bobsleigh trainer with prone flying positions. While these designs showed some physiological benefit, they introduced significant practical difficulties in pilot control, instrumentation layout, visibility, and ejection systems. The concurrent successful development and refinement of wearable G-suits for conventional seated pilots ultimately rendered these complex airframe solutions obsolete. The G-suit provided an effective, transferable solution that did not require a complete redesign of the aircraft cockpit, cementing its place as the primary technological answer to the problem of high-g flight.

Technical Specifications and Performance Data

The performance of a G-suit is measured by its ability to increase a pilot's g-tolerance and the speed of its response. Traditional pneumatic suits, which inflate via the aircraft's engine bleed air through a g-sensitive valve, can have a delay of up to two seconds before reaching full protective pressure. In contrast, modern liquid-filled suits like the Libelle or the g-race suit act instantaneously, as the incompressible fluid transmits pressure immediately. The g-race suit, used in air racing, is a standalone system not connected to the aircraft, containing four fluid-filled tubes called fluid muscles that run vertically from shoulders to ankles, two on the front and two on the rear, holding about four litres of fluid in total and weighing on average 6.5 kilograms.

A g-suit does not so much increase the g-threshold but makes it possible to sustain high g longer without excessive physical fatigue. The resting g-tolerance of a typical person is anywhere from 3 to 5 g. A g-suit will typically add 1 g of tolerance to that limit. Pilots still need to practice the g-straining manoeuvre, which consists of tensing the abdominal muscles to tighten blood vessels and reduce blood pooling. High g is not comfortable, even with a g-suit.

With a modern g-suit and anti-g straining techniques, a trained pilot is now expected to endure accelerations of up to 9 g without blacking out. The fabric of the g-race suit is made out of a special mix of Twaron and Nomex. The effects of anti-g suits are straightforward to replicate in a simulator, although only continuous g can be produced artificially in devices such as centrifuges. In modern fighters, 9 g or more can be sustained structurally, making the pilot the critical factor in maintaining high maneuverability.

Early Recognition of the Problem and Pre-War History

The physiological challenge of g-forces on pilots was recognized long before a technological solution was found. As early as 1917, there were documented cases of pilots losing consciousness in flight, incidents then referred to as fainting in the air. By the 1920s, the tight turns required of Royal Air Force pilots in the Schneider Trophy seaplane races were known to cause blackouts, leading to an informal restriction of maneuvers to about 4 g to limit pilots to a greyout with only partial loss of vision. This early understanding highlighted that the pilot, not the aircraft, was often the limiting factor in high-performance flight. The problem intensified with the development of higher-speed monoplane fighters in the late 1930s, like the Supermarine Spitfire, which were capable of rapid turns generating high g-forces when diving to attack or evade enemy fire. During the 1940 Battle of Britain, it was estimated that up to 30 percent of pilot deaths were due to accidents, with blackout being a contributing factor. Some aircraft of the era even had foot-rests above the rudder pedals so pilots could raise their legs during combat in a rudimentary attempt to minimize blood pooling, though this offered limited protection compared to the suits that would soon follow.

Training, Simulation, and Future Developments

The effects of anti-g suits and positive pressure breathing are straightforward to replicate in a flight simulator, although only continuous g can be produced artificially in devices such as human centrifuges used for high-g training. These training tools allow pilots to practice the anti-g straining manoeuvre and experience the sensations of greyout and g-LOC in a controlled environment, which is critical for building tolerance and learning recovery procedures. The use of centrifuges dates back to Frank Cotton's secret wartime experiments in Sydney, where young airmen volunteers were strapped to the device and monitored until blackout occurred. Today, such training is a standard part of preparing pilots for high-performance aircraft like the Eurofighter Typhoon and F-16 Fighting Falcon. Future developments in G-suit technology continue to focus on improving comfort, reducing response time, and integrating more smoothly with life support and positive pressure breathing systems. Research also continues into suits for spaceflight that address the unique challenge of long-duration microgravity, with concepts like the sequential milking action studied by the Canadian Space Agency representing a potential evolution beyond the uniform pressure suits used in aviation.

Questions about G-suit

What does a G-suit actually do?

A G-suit prevents pilots from blacking out during high-speed manoeuvres. It applies pressure to the abdomen and legs to restrict blood from draining away from the brain and eyes when high g-forces are experienced. This counteracts g-induced loss of consciousness (g-LOC), a major cause of fatal aircraft accidents. The suit works in conjunction with a pilot's own straining technique to maintain cerebral blood flow and first prevents greyout, then tunnel vision, and finally blackout.

What is the difference between old and new G-suit designs?

Early G-suits, like the Franks design, used water-filled bladders. Later designs shifted to lighter, air-inflated bladders based on Mayo Clinic research, which became the NATO standard. The newest advanced designs, such as the Libelle suit for the Eurofighter, have returned to using a liquid medium, which provides faster, more effective pressure without the inflation delay of pneumatic systems. Modern suits also may integrate with positive pressure breathing systems to further assist lung function under high g.

Who invented the first G-suit?

The first g-suits were developed by a team led by Wilbur R. Franks at the University of Toronto's Banting and Best Medical Institute in 1941. Franks had suggested a water-filled system in 1938 and built a prototype with private funding. The suits were manufactured by the Dunlop company and first used operationally in 1942 by pilots of 807 Squadron Fleet Air Arm flying Supermarine Seafires during the Operation Torch invasion of North Africa. These initial Franks suits used water-filled bladders around the legs to counteract the effects of acceleration.

Do astronauts wear G-suits?

Yes, astronauts wear g-suits similar to aviators. However, they face different physiological challenges due to the effects of microgravity compared to pilots in aircraft. Aviator g-suits apply uniform pressure to the lower legs to minimize blood pooling during high acceleration. Research from the Canadian Space Agency implies there might be a benefit in developing a suit for astronauts that uses a milking action to increase blood flow to the upper body, addressing the unique conditions of spaceflight.

Are G-suits used outside of military aviation?

Yes, g-suits are also used in elite competitive air racing. Pilots in the Red Bull Air Race World Championship have worn a specialized g-suit called the g-race suit since the 2009 season. This suit is a water-filled, autonomous and aircraft independent working full-body g-protection system. It is tailor-made for each pilot and contains liquid-filled tubes called fluid muscles that provide counter pressure instantaneously, a faster response than traditional pneumatic suits used in military aviation.
